Wheelchair Vertical Lift: The Ultimate Buying Guide

Modern architectural design is undergoing a major shift toward inclusivity, universal access, and adaptive infrastructure. Whether updating an existing commercial facility to satisfy regulatory mandates or modifying a multi-level private residence, creating seamless transitions between split floor plans is a top priority for developers and property owners alike. To achieve this without the sprawling footprint of a traditional ramp or the extensive spatial demands of a full-scale commercial elevator, integrating a high-performance wheelchair vertical lift has become the industry standard.

Investing in an accessibility asset requires a balanced look at structural engineering, local building regulations, site conditions, and material durability. Choosing the right machinery helps property managers, architects, and homeowners remove physical barriers while preserving architectural integrity and optimizing long-term maintenance costs. This comprehensive guide breaks down the essential structural considerations, drive technologies, safety redundancies, and procurement metrics needed to select a reliable lifting system.

The Structural Role of Vertical Accessibility Equipment

Integrating a wheelchair vertical lift—historically referred to in engineering circles as a vertical platform lift (VPL)—serves as a vital link in inclusive building design. Unlike standard elevators that transport users within a completely enclosed shaft across many floors, these specialized platform systems are designed to bridge short-to-medium vertical gaps. They are commonly installed next to entry porches, stage platforms, mezzanine levels, or split-level office walkways.

From a regulatory standpoint, installing a certified wheelchair vertical lift helps commercial venues comply with national accessibility laws, such as the Americans with Disabilities Act (ADA) in North America or EN 81-41 standards in Europe. By providing an independent, dignified means of travel, public and private spaces become accessible to everyone, including individuals using manual chairs, power chairs, or those with limited mobility. Furthermore, these compact units handle vertical transitions within a fraction of the physical area required by a ramp. A standard concrete ramp requires 12 inches of horizontal run for every single inch of vertical rise, whereas a vertical platform operates entirely within a compact, self-contained footprint.

Architectural Spatial Planning and Hoistway Configurations

Before choosing a specific lifting model, you must evaluate the installation site's layout. A wheelchair vertical lift can be installed in either an unenclosed or a fully enclosed configuration, depending on the total travel height, local building codes, and environmental exposure.

Unenclosed Configuration Metrics

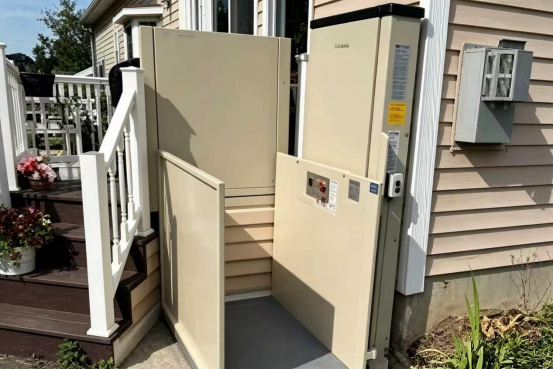

For short distances—typically under 60 inches of total vertical travel—an unenclosed wheelchair vertical lift is often the most practical and cost-effective option. In this layout, the platform moves freely without a surrounding shaftway. Safety is maintained through an under-platform sensor pan that stops downward travel if it encounters an obstacle. This setup is highly popular for residential front porches, school stages, and historic buildings where adding a large structural shaft would disrupt the existing architecture.

Enclosed Shaftway Requirements

When the vertical travel height exceeds 5 or 6 feet, local regulations usually require a fully enclosed hoistway. This enclosure can be a custom-built wood or masonry shaft that matches the building's architecture, or a factory-prefabricated aluminum and glass structure. An enclosed wheelchair vertical lift can travel up to 14 feet, making it an excellent solution for two-story homes or commercial mezzanines. The enclosed shaft isolates the moving platform from the surrounding room, preventing anyone from stepping beneath the lift while it is in motion and protecting outdoor installations from wind, rain, and snow.

Core Propulsion Technologies and Drive Systems

The mechanical drive system hidden behind the lift tower dictates the unit's lifting speed, smooth ride quality, weight capacity, and long-term maintenance needs. The accessibility industry generally relies on three core propulsion methodologies.

1. Acme Screw Drive Systems

The Acme screw drive is widely regarded as one of the most reliable and low-maintenance mechanisms for a residential or light-commercial wheelchair vertical lift. This system features a heavy-duty steel screw shaft that runs vertically inside the lift tower. A motorized drive nut travels up and down the threaded screw to move the platform. Because the pitch of the threads inherently prevents the nut from slipping, this design is self-locking. This mechanical attribute eliminates the risk of a free-fall scenario, providing peace of mind for residential installations.

2. Hydraulic Propulsion Assemblies

For heavy-duty commercial applications where a smooth, quiet ride is a priority, hydraulic drive systems are the preferred choice. These systems utilize an electric pump to push hydraulic fluid into a steel cylinder, which raises the platform either directly or through a chain-hydraulic configuration. A hydraulic wheelchair vertical lift can easily handle higher weight capacities, often lifting up to 1,000 pounds. This allows it to accommodate heavy bariatric power chairs along with a caregiver. However, these systems require space for a small fluid reservoir box and need regular inspections to check fluid quality and seal integrity.

3. Reliable Chain Drive Frameworks

Chain-driven platforms utilize an electric motor and a robust dual-chain pulley assembly to lift the carriage. This configuration delivers an excellent balance of durability and cost efficiency. It provides a faster lifting speed than standard screw drives and performs exceptionally well in extreme outdoor temperatures. Because it operates without hydraulic fluids, a chain-driven wheelchair vertical lift carries zero risk of oil leaks, making it a very clean, environmentally friendly option for indoor corridors and schools.

Technical Performance Matrix of Vertical Lift Systems

To assist architects, contractors, and facility managers in selecting the ideal wheelchair vertical lift for their specific project layout, the comparison matrix below outlines the primary engineering baselines:

Safety Systems, Redundancy, and Compliance Protocols

When selecting mechanical equipment to transport individuals with limited mobility, safety systems must be robust and redundant. High-quality wheelchair vertical lift models incorporate multiple independent mechanical and electronic safeguards to ensure complete user safety under all operational conditions.

The foundation of user safety lies in the landing gate interlock network. Electromechanical interlocks ensure that the platform cannot move unless both the upper and lower gates are completely closed and locked. Similarly, the gates cannot be unlocked unless the platform has come to a complete stop at that specific landing. This eliminates the risk of an open gateway leading to an empty drop.

Furthermore, an emergency battery backup system is a critical requirement for any modern wheelchair vertical lift. In the event of a sudden building power outage, an integrated 24-volt battery system immediately takes over. This backup provides enough power to lower the platform to the bottom landing and release the gate interlock, ensuring users are never stranded mid-travel. Additionally, a sensitive safety pan beneath the platform instantly halts downward movement if it detects an obstacle, like a forgotten box or a pet, preventing damage or injury.

Optimizing the Total Cost of Ownership (TCO)

Procuring accessibility equipment requires assessing the Total Cost of Ownership (TCO), balancing the initial purchase price against long-term operational, electrical, and maintenance expenses. While cheaper equipment options might look appealing upfront, choosing an appropriately engineered wheelchair vertical lift can significantly lower your long-term operating costs.

Material selection is highly critical for outdoor or high-humidity environments. Selecting a wheelchair vertical lift built with marine-grade aluminum, stainless steel hardware, and a durable exterior powder coating prevents premature rust and oxidation. This heavy-duty construction keeps the lift operating smoothly in coastal or sub-zero climates, avoiding the frequent component replacements common with lower-grade materials.

Simultaneously, implementing a regular preventative maintenance routine preserves your investment for decades. Scheduling a bi-annual or annual inspection by a certified technician ensures that drive screws remain lubricated, safety sensors are fully calibrated, and battery backups are tested. This proactive care prevents unexpected downtime, ensuring your wheelchair vertical lift provides dependable, quiet operation for years to come.

Strategic Customization and Aesthetic Harmonization

While mechanical reliability is paramount, a well-designed wheelchair vertical lift should also blend seamlessly with its architectural surroundings. Modern manufacturing techniques offer a wide range of custom aesthetic finishes, transforming a utilitarian lift into a polished design feature.

For modern commercial properties or high-end residential entries, developers can choose transparent acrylic or laminated safety glass panels for the platform walls and matching gates. This choice allows natural light to pass through completely unobstructed, maintaining an open, clean look in narrow entryways or next to grand staircases.

Working closely with experienced manufacturers early in the design phase also allows you to customize the platform's layout configuration. Depending on your floor plan, you can specify a straight-through layout, a 90-degree right-angle exit, or even a three-door opening configuration. This flexibility allows the wheelchair vertical lift to integrate smoothly into complex layouts, matching existing walkways and doors without requiring expensive structural changes to your walls or landings.

Frequently Asked Questions

Q1: What is the main difference between a wheelchair vertical lift and a home elevator?

A: A vertical platform lift is primarily designed to transport a user over short-to-medium distances (typically under 14 feet) on an open or partially enclosed platform with continuous-pressure controls. A home elevator features a completely enclosed cab moving inside a structural shaft across multiple floors at higher speeds, utilizing single-touch automatic controls.

Q2: Can a wheelchair vertical lift be safely installed outdoors in freezing climates?

A: Yes, many units are specifically engineered for harsh outdoor environments. Outdoor models feature weather-resistant components, including sealed electrical enclosures, stainless steel hardware, and silicone-coated control switches. For areas with heavy snow, adding an optional canopy over the tower provides excellent year-round protection.

Q3: Does an ADA-compliant wheelchair vertical lift require a deep concrete pit pad?

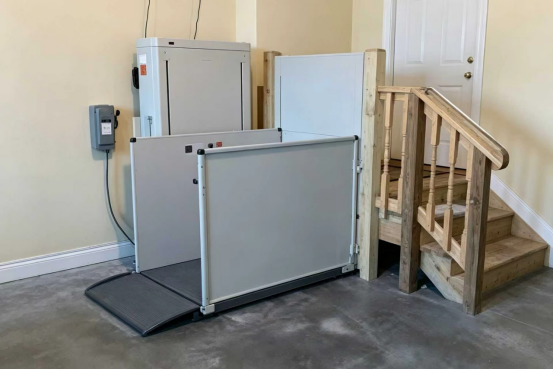

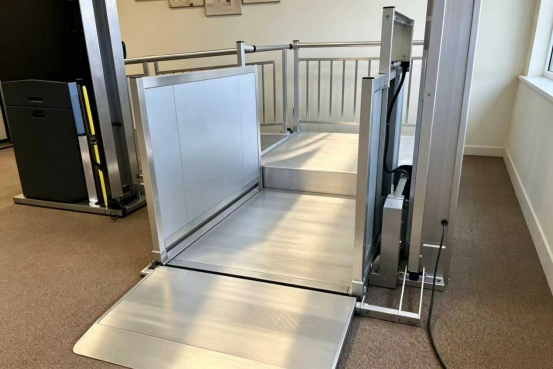

A: Not necessarily. While a shallow 2-to-3-inch concrete pit allows the platform to sit completely flush with the ground floor, many models can be installed directly on an existing level concrete pad. In these flushless setups, a small automatic folding ramp attached to the platform edge provides smooth, easy access without requiring any excavation.

Q4: What are the electrical power requirements for a standard vertical lift?

A: Most standard residential and light commercial models operate on a standard 110V to 220V single-phase alternating current (AC) line. The internal motor typically draws minimal current to charge the battery system, which then powers the hydraulic or screw mechanism, ensuring smooth operation even during a local power outage.

Q5: How much weight can a modern commercial wheelchair vertical lift lift safely?

A: Standard residential models typically feature a lifting capacity of 600 to 750 pounds. For public spaces and heavy-duty commercial applications, high-performance hydraulic systems offer expanded lifting capacities of up to 1,000 pounds, easily accommodating large motorized wheelchairs, bariatric users, and an accompanying attendant.

Conclusion: Ensuring Seamless, Long-Term Access

Investing in a premium vertical platform solution is a definitive step toward creating an accessible, future-proof, and universally welcoming property. By selecting the right drive mechanism for your traffic levels and prioritizing robust, redundant safety features, you can ensure dependable, independent mobility across every level. Partnering with experienced structural engineers guarantees that your equipment satisfies all local safety codes while delivering smooth, quiet performance for decades to come.
