Weatherproof Outdoor VPL: The Ultimate Accessibility Guide

Navigating elevated residential porches, commercial entrances, decks, and outdoor stairways presents a significant physical challenge for individuals using wheelchairs, mobility scooters, or walking aids. When interior space limits the installation of indoor platform lifts, or when architectural designs demand direct entrance access from driveway levels, property owners turn to exterior vertical transportation solutions. Constructing long, sloping concrete or timber ramps frequently demands an excessive architectural footprint, consuming valuable yard space and altering building facades.

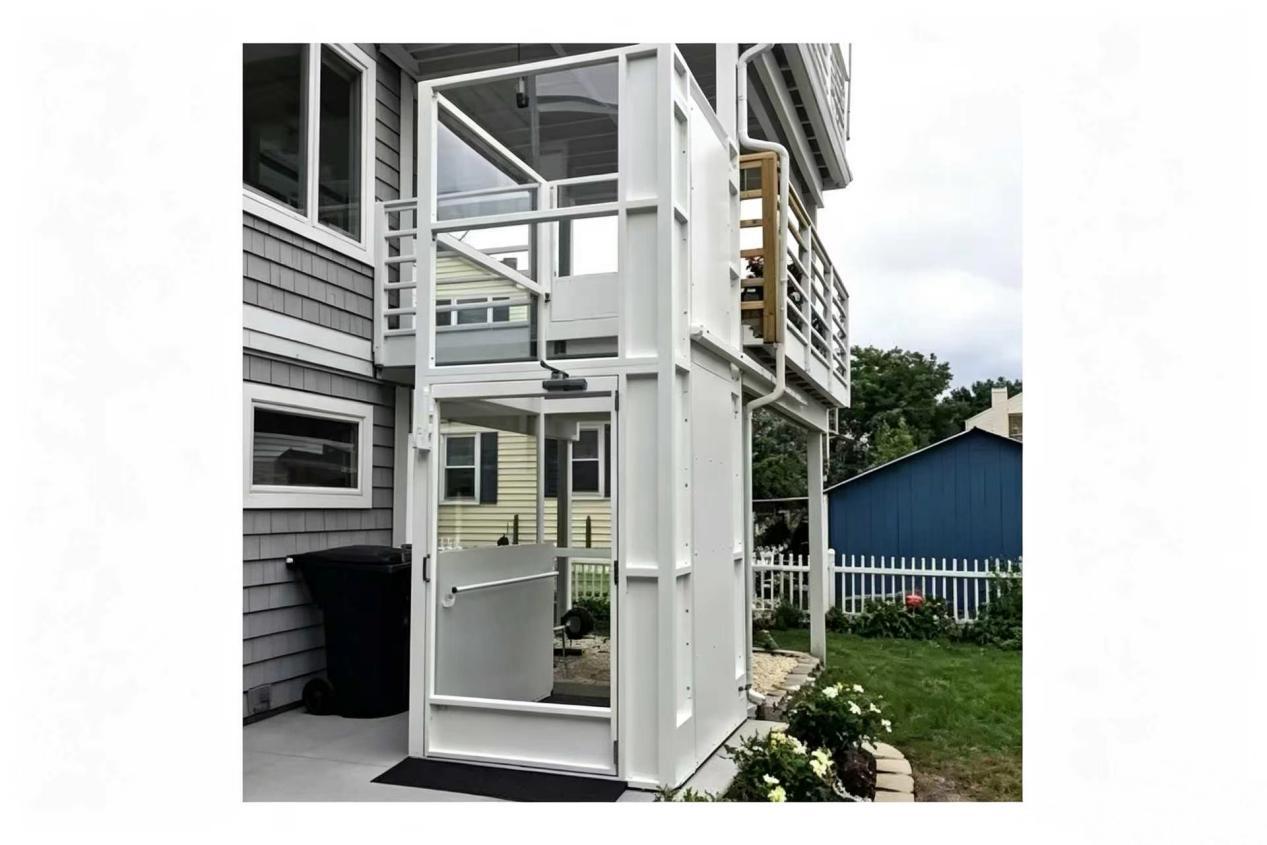

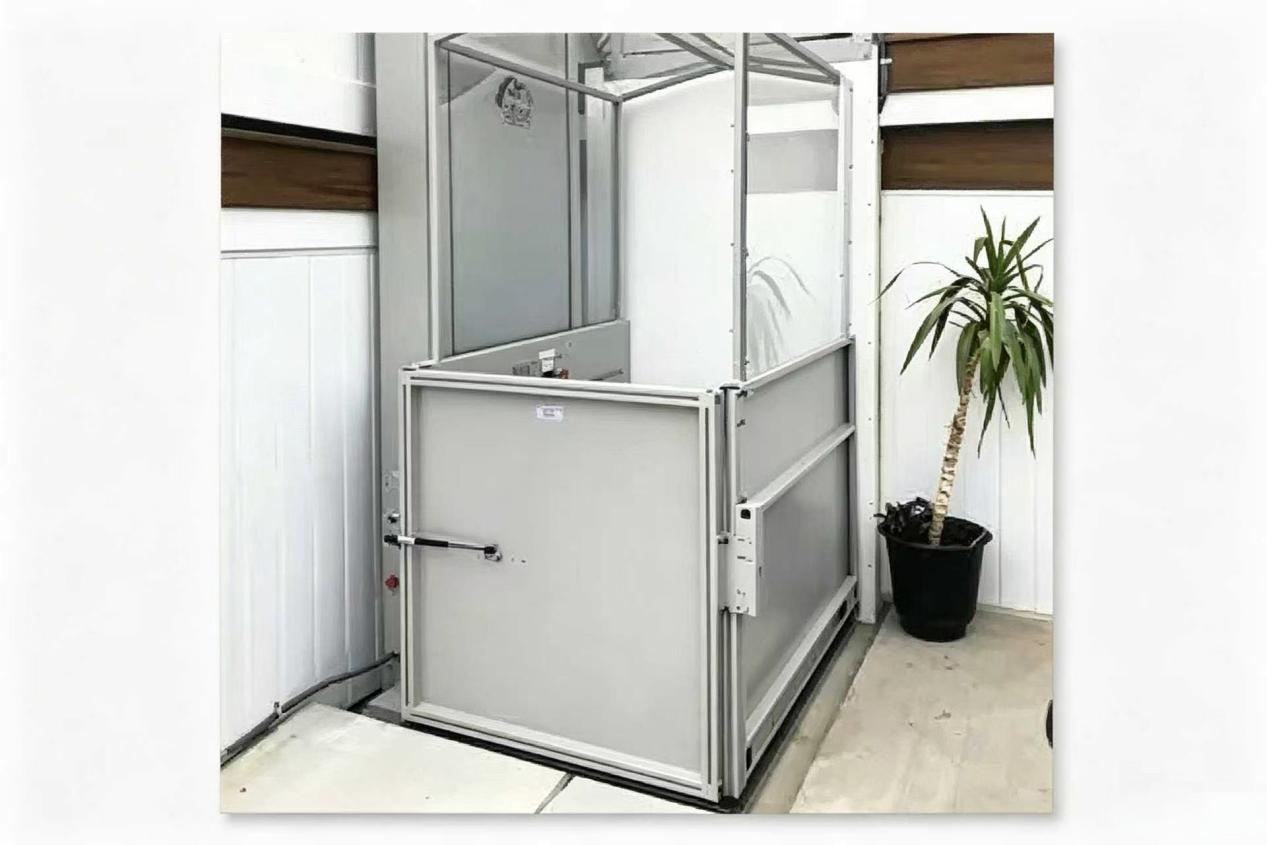

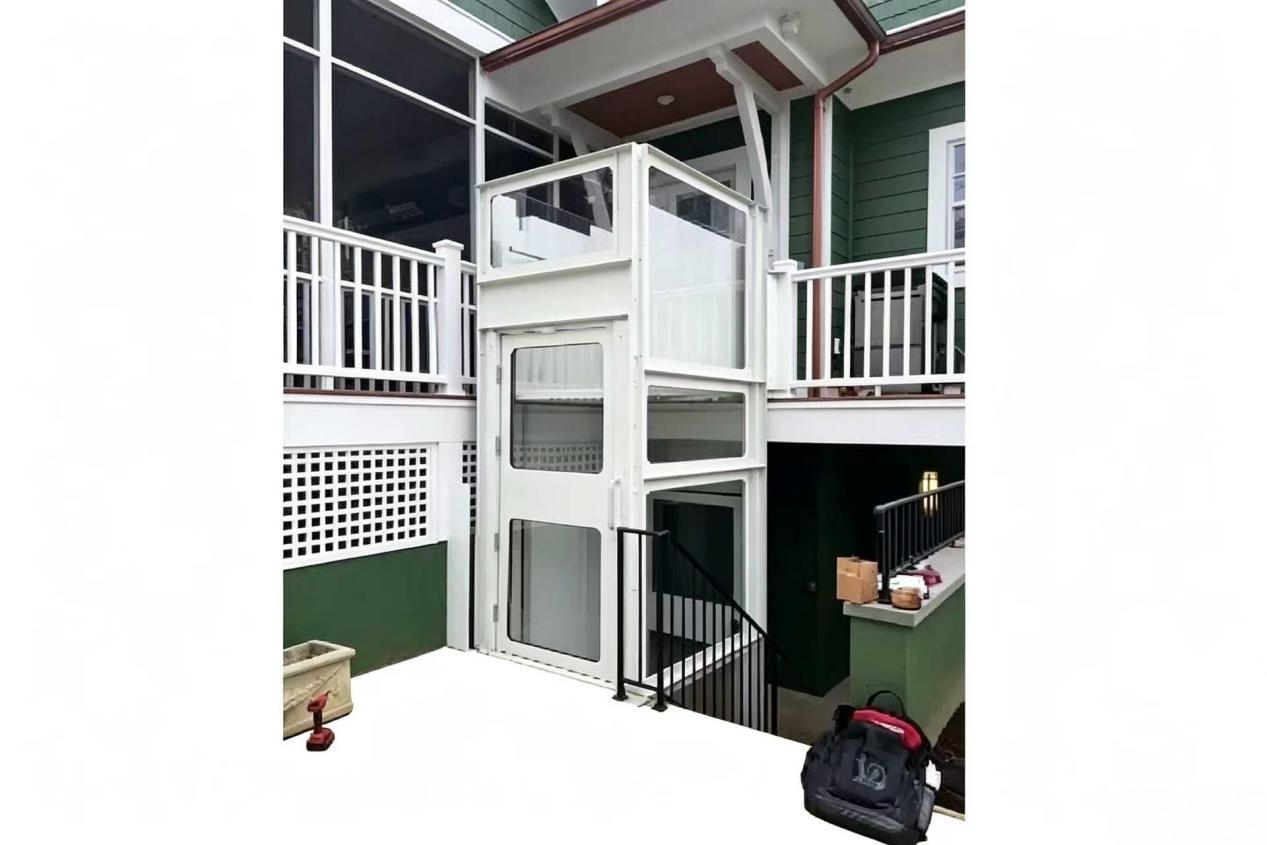

Installing a weatherproof outdoor VPL (Vertical Platform Lift) provides a compact, reliable, and code-compliant exterior accessibility solution. Specifically engineered to withstand harsh atmospheric conditions without mechanical degradation, a weatherproof outdoor VPL delivers smooth, safe vertical elevation across all seasons, protecting user independence while preserving site aesthetics.

Technical Architecture of Outdoor Vertical Platform Lifts

Engineering a high-performance weatherproof outdoor VPL requires balancing heavy-duty mechanical lifting force with advanced environmental protection protocols. Unlike standard indoor vertical platform lifts operating in climate-controlled spaces, outdoor lifts endure continuous exposure to rain, snow, road salt, blowing dust, and intense ultraviolet radiation.

The mechanical assembly relies on a rigid vertical guide tower housing an electro-hydraulic cylinder mechanism or a heavy-duty ACME screw shaft assembly. The open or semi-enclosed lifting carriage travels smoothly along precision vertical tracks, supported by a self-standing tower structure that anchors directly onto a reinforced concrete base pad.

Core Weatherproofing Engineering Components

Marine-Grade Powder-Coated Structural Tower: Heavy-gauge galvanized steel or aluminum alloy structural framing treated with zinc-rich primers and architectural-grade exterior powder coatings to stop rust formation.

Encapsulated Drive Assembly and Control Enclosure: IP65-rated sealed electrical control cabinets, rain cowls, and protected motor housings that shield critical drive components from water ingress.

Non-Slip Perforated Drainage Platform Deck: Heavy-duty diamond-tread aluminum platform deck equipped with micro-perforations to clear standing rain and melting snow automatically.

Waterproof Landing Call Stations and Switches: Sealed marine-grade rocker controls, key switches, and emergency stop buttons designed to operate across extreme sub-zero or scorching summer temperatures.

Thermostatically Controlled Internal Heaters: Auxiliary thermal elements within the main drive cabinet that activate automatically when ambient temperatures drop near freezing, keeping hydraulic fluid at optimal viscosity.

Key Benefits of Installing a Weatherproof Outdoor VPL

1. Exceptional All-Weather Operational Reliability

The primary engineering value of a weatherproof outdoor VPL lies in its continuous environmental resilience. Designed with cold-weather hydraulic oils, internal anti-condensation heating elements, and corrosion-resistant fasteners, these lifts maintain smooth platform travel during winter freeze cycles and heavy summer rainstorms alike.

2. Space-Efficient Exterior Access

Constructing an ADA-compliant ramp for an elevated porch deck 1.5 meters high requires at least 18 linear meters of sloping track, plus flat turning landings. A weatherproof outdoor VPL occupies a compact footprint of under two square meters, delivering vertical mobility without consuming driveway or lawn real estate.

3. Rapid Site Assembly and Minimal Civil Disruption

Installing an exterior vertical platform lift requires minimal civil masonry work. Once a level concrete foundation pad is poured and powered, a modular weatherproof outdoor VPL can be assembled, anchored, wired, and safety-tested by certified technicians within one to two working days.

4. Preservation of Architectural Curb Appeal

Modern outdoor platform lifts feature clean, low-profile framing options and customizable enclosure finishes. Instead of altering home entryways with sprawling wooden ramps, a sleek weatherproof outdoor VPL integrates seamlessly alongside existing porches, verandas, or commercial facades.

Deep Engineering Analysis: Protection Against Weathering Hazards

Understanding how specialized manufacturing combats exterior environmental hazards highlights why a certified weatherproof outdoor VPL outlasts standard indoor machinery adapted for outdoor use:

Corrosion Mitigation via Hot-Dip Galvanizing

Steel structural components, platform frames, and base weldments undergo multi-stage hot-dip galvanizing, submerging raw steel into molten zinc to form an impermeable rust-resistant barrier. A final thermoset polyester powder coat is baked on, shielding the structure against coastal salt spray and humidity.

Waterproof Seals and Sealed Bearings

All electrical wiring harnesses pass through IP68-rated waterproof strain-relief cable glands. Drive shaft bearings, roller guide shoes, and electrical micro-switches feature silicone O-ring seals and pre-lubricated sealed housings, eliminating water intrusion and rust formation.

UV-Stabilized Polymer Materials

Plastic components exposed to direct sunlight, such as control button caps, wiring conduit sleeves, and bumper guards, are molded from UV-stabilized ABS or polyurethane polymers. This prevents material yellowing, brittleness, and thermal cracking caused by solar exposure.

Architectural Integration and Site Planning

Successfully positioning a weatherproof outdoor VPL within a residential landscape or commercial entryway requires harmonizing structural dimensions with existing architectural elements. Proper spatial planning eliminates visual clutter and guarantees that the lift operates as an intuitive, natural extension of the building's main access route.

Architects and accessibility consultants should assess the orientation of primary entry doors, handrail placements, and overhead architectural eaves during the initial site design stage. Positioning the weatherproof outdoor VPL adjacent to an existing veranda column or within a structural building recess provides natural shelter from wind-driven debris while maintaining clear pedestrian access along main staircases and walkways. Furthermore, selecting custom RAL powder-coating colors allows the lifting tower frame and enclosure gates to blend harmoniously with exterior masonry, timber cladding, or aluminum trim.

Technical Comparison of Exterior Accessibility Systems

Selecting the ideal exterior mobility mechanism requires evaluating travel heights, environmental durability, footprint constraints, and equipment budgets. The table below compares a weatherproof outdoor VPL with other exterior accessibility options.

Technical Prerequisites Before Exterior Installation

To ensure structural safety, long-term stability, and smooth installation, contractors must fulfill key pre-installation requisites prior to positioning a weatherproof outdoor VPL:

Concrete Base Pad Construction: A reinforced level concrete pad (minimum 100 mm depth, 3,000 PSI compressive strength) must be poured to anchor vertical tower base plates securely against high wind loads.

Dedicated Weatherproof Power Line: Install a dedicated 110V or 220V electrical circuit terminating in an IP66 GFI-protected exterior junction box adjacent to the lift tower location.

Ground Drainage Slope: The concrete pad perimeter must slope away from the lift tower base to prevent standing water accumulation or ice buildup around base mounting hardware.

Upper Landing Gate Alignment: The upper porch rim or deck threshold must be structurally sound to support the electromechanical upper gate interlock assembly without flex.

Advanced Safety Features in Outdoor Platform Lifts

Passenger safety remains paramount when operating exterior vertical transportation equipment. A certified weatherproof outdoor VPL incorporates redundant safety protections:

Under-Platform Obstruction Safety Pan: A full-coverage pressure-sensitive safety pan beneath the platform immediately halts downward travel if it contacts objects, snow drifts, or pets.

Automatic Roll-off Guard Flap: The bottom landing access ramp automatically folds upward into a locked vertical steel guard barrier before elevation begins, preventing wheelchairs from rolling off deck edges.

Emergency Auxiliary Battery Lowering: In municipal electrical power outages, integrated backup batteries power the carriage down safely to ground level, disengaging landing gates.

Electromechanical Landing Gate Interlocks: Landing gates remain locked while the lift carriage is in motion, opening only when the platform is level at landing thresholds.

Constant-Pressure Touch Controls: Weatherproof rocker switches require continuous user pressure to operate, ensuring full operator control throughout vertical travel.

Recommended Maintenance Protocols for Exterior Lifespan

Routine preventative maintenance ensures a weatherproof outdoor VPL operates quietly, smoothly, and dependably across years of extreme weather exposure:

Monthly Inspection Routine: Clear leaves, dirt, ice, and snow from the platform deck, test the under-platform safety pan, check landing gate interlocks, and verify emergency stop button operation.

Quarterly Lubrication Servicing: Apply synthetic marine-grade grease to vertical guide rails, drive chains, or screw shafts, and check hydraulic fluid levels for cold-weather viscosity.

Semi-Annual Electrical Checks: Inspect wiring harness insulation, test battery backup charging voltage, and verify that electrical box silicone gaskets remain watertight.

Annual Certified Audits: Engage qualified lifting technicians to inspect foundation anchor bolt torque, perform full payload safety brake tests, audit weather-seal integrity, and recalibrate limit sensors.

Frequently Asked Questions (FAQ)

Q1: Can a weatherproof outdoor VPL operate reliably in sub-zero freezing climates?

Yes. Cold-climate models feature synthetic low-viscosity hydraulic oils, internal electric heating pads for drive motors, sealed switches, and heated oil reservoirs designed to operate down to -25°C (-13°F).

Q2: Is a deep concrete pit necessary to install an outdoor VPL?

No, a deep pit is not required. Exterior vertical platform lifts feature low deck profiles and mount directly onto a level concrete pad, utilizing a short folding ramp for smooth wheelchair access.

Q3: What is the typical payload capacity of an outdoor wheelchair lift?

Standard residential and commercial models feature rated capacities ranging from 250 kg to 400 kg (550 lbs to 880 lbs), which comfortably supports an adult in a heavy power wheelchair alongside an attendant.

Q4: How do outdoor platform lifts handle snow and ice accumulation?

Perforated aluminum platform decks allow melting snow to drain freely. Adding optional acrylic canopy roofs and side enclosures shields the lifting carriage from heavy snow accumulation.

Conclusion and Engineering Support

For homeowners, building contractors, and mobility specialists seeking a durable, space-efficient, and all-weather accessibility solution, a weatherproof outdoor VPL delivers the ideal balance of safety, structural simplicity, and exterior longevity. By eliminating the need for sprawling ramps and withstanding harsh climate conditions, these lifts provide smooth, independent vertical access year-round.
