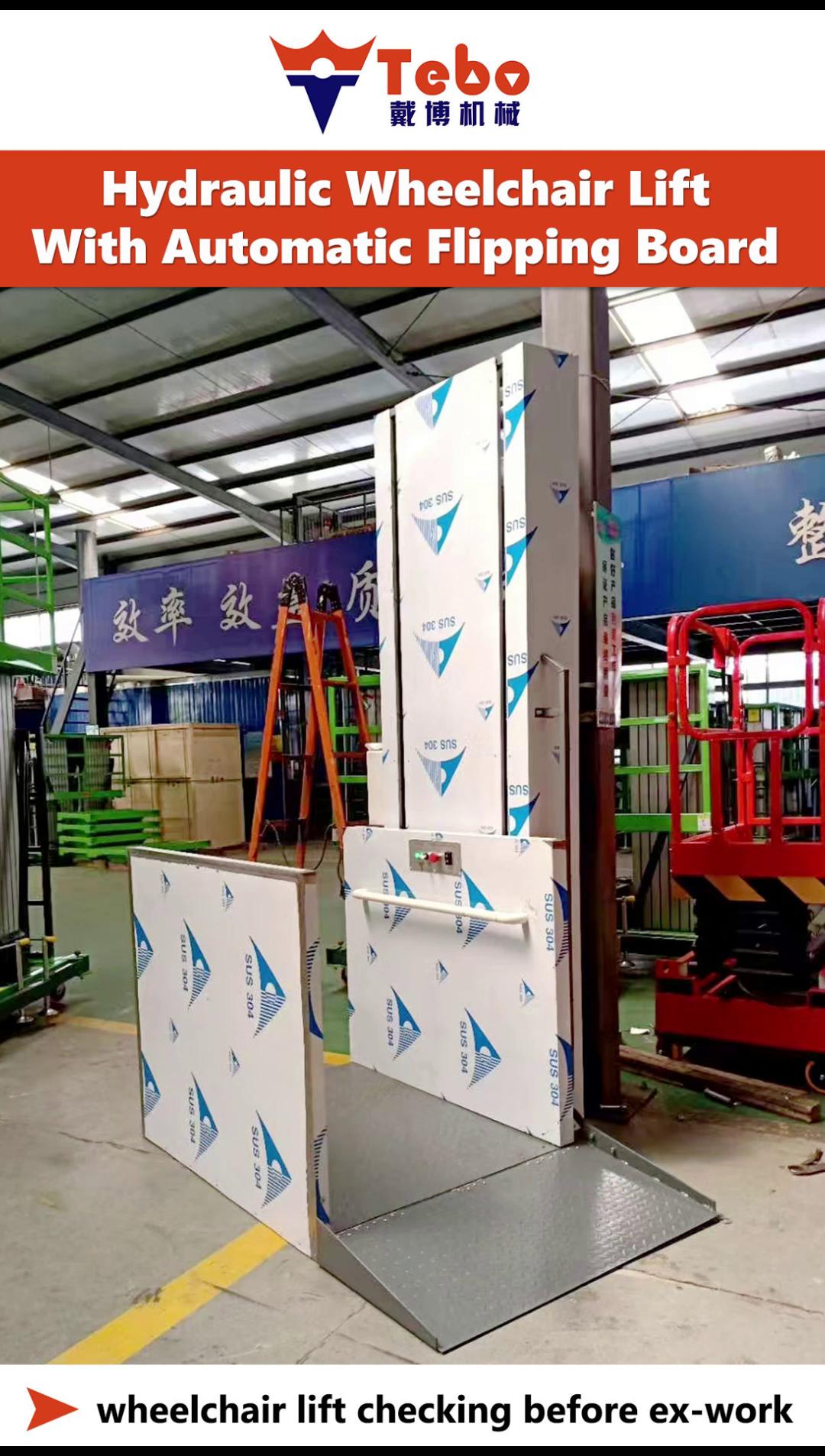

Hydraulic handicapped wheelchair lifts finishes with stainless steel board

Application and chief introduction

Hydraulic wheelchair lifts are widely used in various settings to enhance accessibility. They are commonly installed in residential homes, commercial buildings, and public spaces, such as schools, places of worship, and community centers. These lifts are ideal for providing vertical access between different floor levels without the need for extensive construction or the space required by traditional elevators. They are particularly beneficial in older buildings or spaces where retrofitting an elevator is not feasible.

Basic feature and advantage

Flexible size designing

The hydraulic wheelchair lift's platform size can be designed flexibly, which is different from traditional wheelchair lifts' design. While classic traditional lift designs must strictly match the capacity and platform size, hydraulic lift design is highly adaptable and smart; even a very small shaft can accommodate a functional wheelchair lift.

Small shaft designing

The hydraulic wheelchair lift can be tailored to fit into extremely tight spaces, such as narrow corridor corners or confined basement areas. Even when the installation space is as limited as 1000*1000mm or smaller, designing and installing the lift remains straightforward. This flexibility simplifies the civil work preparations for clients or project agents, making it easier to accommodate the lift within the given constraints.

Pitless installation

Hydraulic wheelchair lifts offer the advantage of needing minimal pit depth for installation. Sometimes, a civil pit as shallow as 150mm suffices, or no pit with a ramp is required at all. This flexibility facilitates easy installation and use, setting hydraulic lifts apart from traditional traction lifts that often need deeper pits.

Overhead room height lower can be lower than traction elevator's requested

If a customer wants to install a traction elevator, the top floor's overhead room height needs to be at least 4000mm or it requires an extra machine room. However, when you want to install a hydraulic lift, an overhead room height of only 2.5m will be enough, and there is no need for an extra machine room.

Production details explanation

Lift structure

The enclosure is typically made from aluminum and glass, which not only provides a modern and elegant look but also ensures strength and durability. The aluminum frame offers structural integrity, while the tempered glass panels allow for natural light and an open feel on the lift platform.

Hydraulic system

The lift operates on a hydraulic system, which is known for its reliability and ease of maintenance. The hydraulic system allows for a smooth and quiet operation, making it perfectly suitable for residential settings.

Electric system

Tebo hydraulic wheelchair lifts utilize a microcomputer-controlled electric system, ensuring ultra-smooth vertical movement with precision stability. All control, signal, and power cables feature industrial-grade plug-and-play connectors for rapid, error-proof installation. This modular design reduces wiring complexity, accelerates setup, and enhances durability, meeting stringent IEC safety standards for industrial automation.

Finishes parts

Our hydraulic wheelchair lift platforms offer a range of manual options and finishes tailored to meet specific requirements. We provide three platform models: Model A features a guide rail platform with an enclosure height of approximately 1000mm, made of durable stainless steel board material. Model B is also a guide rail type, utilizing stainless steel with glass materials, making it beautiful and durable. Model C showcases a scissor type which doesn't require any vertical guide rails.

The enclosure is typically made from aluminum and glass, which not only provides a modern and elegant look but also ensures strength and durability. The aluminum frame offers structural integrity, while the tempered glass panels allow for natural light and an open feel on the lift platform.

Safety system

Emergency stop system

We designed an emergency button for the hydraulic wheelchair lift, ensuring that in the event of any unexpected issues, users can swiftly press it to halt the lift's operation abruptly, safeguarding the lift's structure and the operator's safety.

Additionally, we incorporated platform safety sensors using infrared light curtains. If any item loaded on the platform falls out of the platform threshold, the lift will immediately stop, ensuring the safety of both the lift and personnel.

The lift doors can be secured using door safety sensor limit switches, door-touching locks, or electromagnetic locks, meaning the lift can only operate when all doors are securely closed. During normal operation, if any door is opened, the lift will stop immediately, guaranteeing the safety of both the hydraulic lift and its users.

Overload system

Tebo hydraulic lifts feature a crucial overload protection system. This safeguard is designed to detect when the lift load surpasses the standard capacity. As soon as this occurs, the lift promptly stops and emits a loud alarm. Resuming operation is only possible when the load is within the limit, protecting the equipment and preventing potential hazards.

Bottom safety touching board

The safety board can protect any people or obstacles that are blocked under the platform table. When any obstacle touches the bottom board, the lift will stop immediately.

Safety light curtain

When the lift is working and a person’s hand is extended outside the platform perimeter, the lift will stop automatically. This prevents the lift from hurting people due to unreasonable or improper usage of the equipment.

Drawing/sketches of worksite and lift

The worksite’s parameters should be collected

Lifts’ basic parameters

Lifts’ drawing showing

Other services of us

Warranty

Tebo company provides a comprehensive 24month warranty for all its equipment, starting from the date of elevator handover. The warranty covers a wide range of essential components, including the entire transmission system, all hydraulic devices (with oil hoses and nipples), electrical parts and equipment (such as elevator LOP/COP and display systems), and specially finished accessories like door handles, hinges, and locks. This ensures that our customers can rely on our products for a long time.

Delivery time

At Tebo factory, each hydraulic lift platform is finished the production within 14 working days, with standard models frequently completed even earlier, often in under 10 days.

After sales work

We provide comprehensive 24/7 online after-sales support to ensure that our clients receive prompt assistance whenever they encounter difficulties during the installation or operation of their lifts. Whether clients reach out via phone or email, our dedicated after-sales team guarantees a swift response within 20 minutes. We assign specialized after-sales personnel to cater to the unique needs of various projects. Our after-sales services encompass assisting with installations through videos and manuals, troubleshooting in the event of lift malfunctions, reminding clients to perform regular maintenance on their lifts, and more.
