Home elevator with shaft enclosure

Application & Introduction

The Tebo hydraulic home elevator is driven by an advanced hydraulic pump station and cylinder mechanism, ensuring an ultra-smooth, quiet, and energy-efficient ride.

Perfect for low-rise buildings (2–6 floors), this model features a fully integrated shaft enclosure, making it ideal for residences prioritizing premium aesthetics, noise reduction, and space-saving mobility. It provides a safe transport solution for wheelchairs and individuals with limited mobility. Thanks to its self-supporting enclosure, it fits seamlessly into tight spaces or outdoor walls without requiring a concrete brick hoistway or a dedicated machine room.

Applications: Villas, private estates, duplexes, apartments, small office buildings, hotels, and restaurants.

Basic Features & Advantages

Low Maintenance Costs: Simple mechanical structure requires only regular fluid checks and basic wear-part replacements, ensuring lower operating fees than traction elevators.

High Cost-Efficiency: Offers a lower initial investment and reduced structural preparation costs, making it a highly economical choice.

Space & Energy Saving: Pitless installation prevents home structural damage. It runs on standard household power with low consumption under 4 kW.

Easy Enclosure Setup: Eliminates the need for civil brick shafts; the self-supporting enclosure requires only a single load-bearing wall for installation.

Proven Safety Assurance: Engineered with multiple redundant safety systems to guarantee absolute user security during travel.

Excellent Noise Isolation: High-performance pump station paired with the sealed enclosure keeps operational noise under 60 dB for a peaceful home environment.

Technical & Production Details

Lift Structure & Hydraulics

Built with a heavy-duty steel framework—including high-strength columns and reinforced platforms—treated with an anti-corrosion spray-painting process. The core hydraulic pump station and cylinder deliver pressurized oil for quiet, fluid motion with minimal long-term servicing.

Electrical System

Utilizes an advanced microcomputer-controlled system for precision stability. Control, signal, and power cables feature industrial-grade, plug-and-play connectors for rapid, error-proof installation, fully complying with IEC safety standards.

Premium Shaft Enclosures & Finishes

Integrated Shaft Enclosure Benefits

Isolation & Protection: Seals out external dust and dampens mechanical sounds (≤ 55 dB) while protecting guide rails from foreign objects.

Modern Aesthetic: Elegant aluminum frame with tempered glass walls delivers a transparent appearance, enhancing the visual openness of luxury villas.

Landing Door Configurations

Manual Swing Door: Single-panel door (700–900mm wide) with an aluminum frame and glass, sized perfectly for wheelchairs.

Automatic Swing Door: Provides automated, contactless opening via buttons or sensors—ideal for users with limited mobility.

Center-Opening Automatic Swing Door: Symmetrical central-opening design that minimizes lateral space, perfect for narrow entryways.

Cabin Material Options

Aluminum Frame with Tempered Glass: Lightweight, high-strength structure maximizing natural light and transparency.

Stainless Steel with Tempered Glass: Combines a rugged stainless steel frame with expansive glass panels for a sleek, modern aesthetic.

Classic Stainless Steel: Crafted from premium etched-pattern stainless steel, providing a scratch-resistant and permanently durable finish.

Advanced Safety Systems

Emergency Stop System: An easily accessible button cuts system power instantly, bringing the elevator to an immediate halt.

Safety Light Curtain: Projects infrared beams across the entrance; if the barrier is interrupted, the lift stops instantly to prevent injury.

Bottom Safety Sensor Board: A pressure-sensitive board under the platform stops the lift immediately upon contact with any obstacle during descent.

Mechanical Anti-Fall Brake: Engages instantly to lock the lift safely mid-travel in the highly unlikely event of a transmission chain failure.

Emergency Landing Door Lock: Features an exterior rescue lock so authorized personnel can open the landing doors from the outside using a specialized key.

Manual Lowering Valve: Allows manual release of hydraulic oil at the pump station to lower the cabin smoothly to the ground floor during an electrical fault.

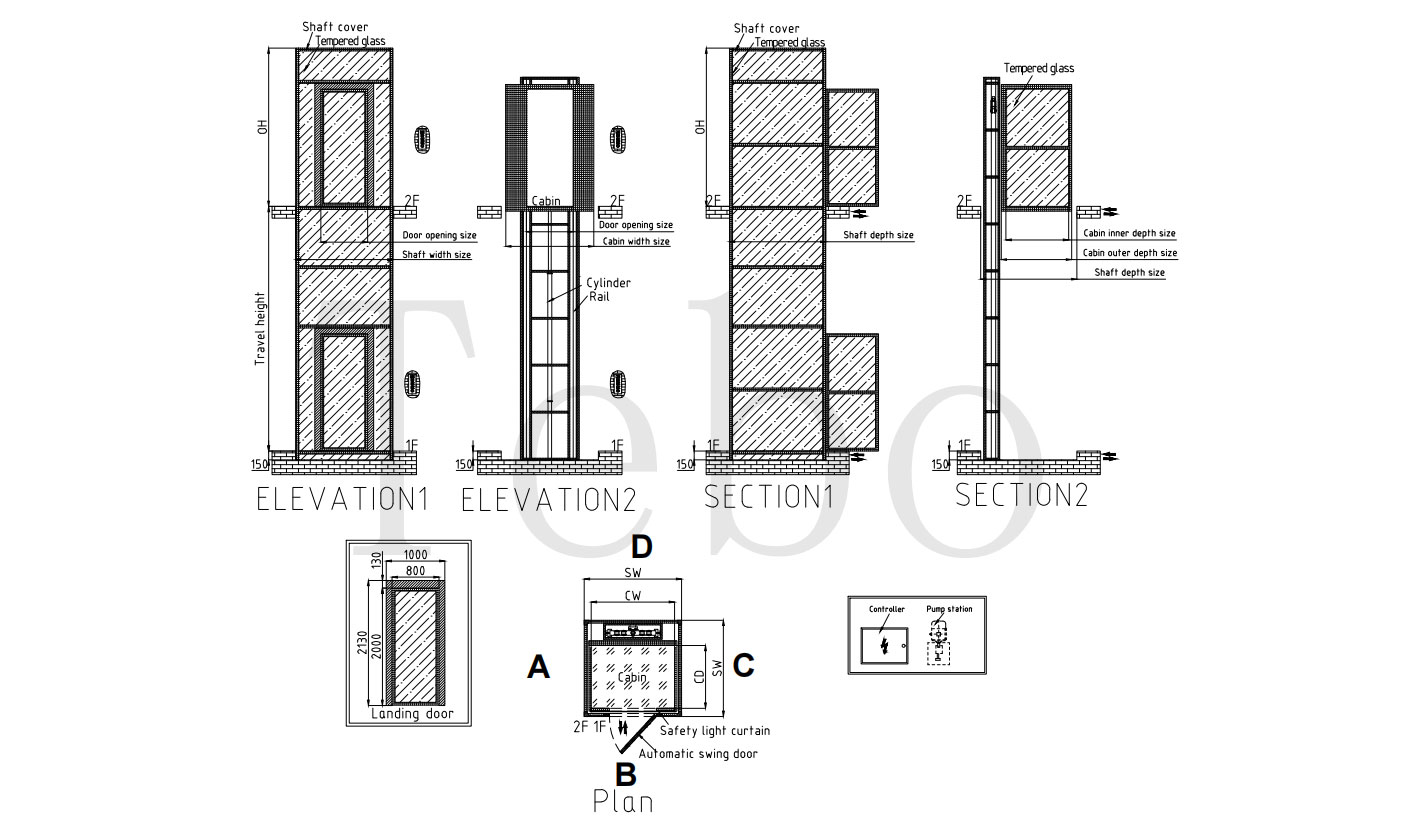

Drawing/sketches of worksite and lift

The worksite's parameters should be collected

Lifts' basic parameters

Lifts' drawing showing

Other services of us

Warranty (24-Month Coverage)

Tebo provides a comprehensive 24-month warranty for all equipment, effective from the date of elevator handover. This warranty covers a wide range of essential components, including the complete transmission system, all hydraulic devices (including oil hoses and fittings), electrical parts (such as LOP/COP and display systems), and premium finish accessories like door handles, hinges, and locks. We stand behind our quality to ensure long-term reliability for our clients.

Delivery Time

At the Tebo factory, every hydraulic lift platform is production-ready within 14 working days. For our standard, non-customized models, the production cycle is typically streamlined and completed in less than 10 days, ensuring fast fulfillment and shipping.

After-Sales Support

We offer professional, 24/7 online after-sales support to provide prompt assistance during lift installation or operation. No matter the time zone, our dedicated technical team guarantees a swift response within 20 minutes via phone or email. To ensure seamless communication, we assign specialized personnel to manage the unique needs of each project. Our comprehensive services include:

Installation Guidance: Detailed step-by-step manuals and clear video tutorials.

Troubleshooting: Rapid technical diagnostics and solutions in the event of any malfunction.

Maintenance Alerts: Regular reminders to help you perform routine maintenance and prolong the lift's lifespan.
