Custom Wheelchair Vertical Lift: Ultimate Buyer’s Guide

Ensuring unhindered mobility and independent access for individuals who rely on wheelchairs or mobility scooters is a foundational requirement of modern residential architecture and commercial building design. Standard architectural barriers—such as porch steps, elevated entryways, multi-level decks, and mezzanine floors—can present severe obstacles, isolating valuable spaces and compromising safety. While traditional ramps are sometimes utilized, they often require an impractical amount of structural horizontal space to maintain a safe slope. Consequently, installing a specialized, space-saving custom wheelchair vertical lift has become the gold standard for achieving seamless vertical accessibility.

However, choosing the right vertical platform lift (VPL) involves evaluating unique geographic, spatial, and mechanical variables. Because no two buildings possess identical entry layouts or clearance limitations, choosing a generic, out-of-the-box system frequently results in installation friction and structural non-compliance. Investing in a tailored engineering solution guarantees that the platform integrates flawlessly with your existing porch or hallway layout. This comprehensive guide will analyze the technical drive mechanics, architectural custom options, and international safety protocols to assist you in sourcing the perfect custom wheelchair vertical lift for your facility or private home.

Technical Driving Mechanisms: Hydraulic vs. Screw Drive Systems

When configuring an industrial-grade or residential accessibility system, the internal drive architecture determines how reliably the platform performs across changing seasons and heavy load conditions. Most customized personal lifting platforms rely on one of two primary drive engineering technologies.

1. High-Torque Hydraulic Drive Technology

Hydraulic vertical platform lifts are highly valued for their exceptional lifting smooth-ness and whisper-quiet operation. These systems utilize a compact electric motor and fluid pump to extend a heavy-duty steel piston cylinder, raising the carriage effortlessly. A hydraulic custom wheelchair vertical lift is perfectly suited for luxury homes, senior care facilities, and medical clinics where minimizing mechanical operational noise is a top priority. Furthermore, because the primary weight-bearing load is concentrated on the heavy baseplate foundation rather than the upper wall supports, hydraulic configurations place very little structural strain on your existing walls.

2. All-Weather Mechanical Screw Drive Systems

Screw drive systems utilize a continuously threaded steel shaft paired with an industrial-grade drive nut attached to the platform carriage. When the electric motor spins the nut, it climbs the vertical screw to lift the occupant. This technology is incredibly robust and popular for outdoor installations because it is entirely free from hydraulic oils, eliminating any risk of fluid thickening or leaking in sub-zero winter temperatures. Additionally, screw-driven units can easily achieve a completely pitless profile, allowing the lift base to bolt directly onto an existing flat concrete pad.

Customization Vectors: Tailoring the Lift to Your Specific Space

The primary advantage of opting for a bespoke fabrication over a mass-produced unit is the ability to adapt every single dimension and entrance layout to your physical building constraints. A premium custom wheelchair vertical lift can be altered across multiple physical parameters:

Platform Dimensions and Structural Footprints

Standard wheel-chairs require a clear internal platform space of at least 36 inches by 54 inches to operate comfortably. However, if your specific installation site features a narrow corridor, an awkward turn, or requires a heavy motorized scooter alongside an attendant, a tailored manufacturing process allows the platform width and length to be scaled precisely by the inch, ensuring a perfect fit without requiring extensive masonry demolition.

Multi-Directional Entrance Configurations

Depending on how your porch or entryway connects to your sidewalk or driveway, the lift carriage must be configured to accommodate different traffic flows. A custom wheelchair vertical lift can be engineered with three primary configuration types:

Straight-Through (180-Degree): The user enters from one side and exits from the opposite side.

90-Degree Adjacent Turn: The user enters from the front and exits through a side gate, ideal for corner-situated patios.

Same-Side Enter/Exit: Useful for specific deep pit applications where entry and exit occur on a single floor boundary.

Accessibility Equipment Customization Matrix

To guide your procurement team or general contractor, the table below maps out how different custom features align with specific residential and commercial environmental challenges:

Weatherproofing Upgrades for Outdoor Environments

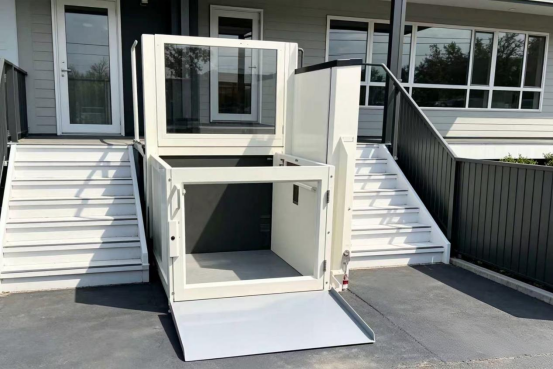

When installing a custom wheelchair vertical lift outside an entryway, the machinery is continually exposed to harsh elements such as heavy rain, blistering summer heat, wind-blown dust, and winter snow. Standard indoor electronics will fail rapidly under these conditions, making specialized marine-grade upgrades a vital investment.

Anti-Corrosion Surface Treatments

To prevent structural rust and paint peeling, the entire chassis of an outdoor custom wheelchair vertical lift should undergo hot-dip galvanization or be coated with an industrial-grade, UV-resistant powder coat. For coastal areas exposed to highly corrosive saltwater air, utilizing premium 304 or 316-grade stainless steel hardware prevents premature structural fatigue.

Weather-Sealed Electrical Modules

All critical control boxes, limit switches, and call stations must carry a minimum waterproof rating of NEMA 4X or IP65. Additionally, the main hydraulic power unit or screw motor must be safely stored inside a fully insulated, weather-tight enclosure box, equipped with internal heaters if the lift is deployed in geographic regions prone to sub-zero winter freeze cycles.

Comprehensive Safety Protocols and International Compliance

Because this machinery is engineered to transport vulnerable individuals, integrating redundant, foolproof safety mechanisms is non-negotiable. A high-quality custom wheelchair vertical lift must meet strict international regulatory standards, such as ASME A18.1 (in North America) or European CE MD2006/42/EC directives.

Essential Active Safety Features:

Under-Platform Safety Pan Sensors: The entire bottom surface of the platform must be lined with highly sensitive pressure plates. If the lift encounters an obstacle while descending—such as a forgotten toy, a package, or a family pet—the safety pan instantly cuts all power, stopping the descent in fractions of an inch to prevent crushing.

Automatic Landing Gates with Electro-Mechanical Interlocks: To prevent accidental falls from an elevated porch, the landing gate at the upper tier remains locked mechanically. It will only unlock when a custom wheelchair vertical lift platform has fully docked and leveled with the floor landing.

Emergency Battery Lowering and Manual Descent: If a sudden home power outage occurs, a secondary battery module automatically takes over, allowing the occupant to lower themselves to the ground level safely. For absolute redundancy, a manual hydraulic bleed valve or mechanical hand-crank allows manual lowering from outside the lift unit.

Anti-Skid Platform Surfaces: The lifting deck must be constructed from raised diamond-tread aluminum or lined with high-traction rubberized coatings to prevent wheelchair tires or crutches from slipping during wet or icy conditions.

Maintenance Schedules for Peak Operational Reliability

A customized accessibility platform is an investment meant to provide decade-long structural reliability. To ensure that your custom wheelchair vertical lift maintains its ultra-smooth travel characteristics and whisper-quiet performance, a preventative maintenance routine must be executed.

Quarterly Safety Audits: Manually trigger the under-platform safety pan sensors to verify instantaneous shutoff. Test the emergency stop buttons on the platform and external call stations to guarantee prompt circuit interruption.

Structural Cleaning and Lubrication: For outdoor units, clear away dead leaves, dirt, or ice accumulation from the base track pathways. Apply high-viscosity grease to the mechanical screw shaft or vertical guide rails every six months to prevent friction-induced metal wear.

Hydraulic Seal and Viscosity Verification: If your unit utilizes hydraulic cylinders, check the fluid levels annually. Ensure the hydraulic oil remains crystal clear and inspect all hose connections for signs of microscopic weeping or pressure loss.

Frequently Asked Questions (FAQ)

Q1: Is a deep foundation pit required to install a custom wheelchair vertical lift?

No, one of the main structural advantages of a custom wheelchair vertical lift is its ability to bypass heavy excavation. Most models feature an ultra-low profile chassis that can either sit inside a shallow 2-inch foundation recess or attach directly onto a flat concrete pad, utilizing a short, automatic folding ramp to provide smooth rolling access for wheelchairs.

Q2: How does a vertical wheelchair platform lift compare to a traditional access ramp?

According to ADA regulations, a standard access ramp requires 12 inches of horizontal length for every 1 inch of vertical rise. For a 4-foot-high porch, you would need a sprawling 48-foot-long ramp, which entirely consumes your yard space. A custom wheelchair vertical lift solves this issue by occupying a compact, vertical footprint of roughly 5 feet by 5 feet, keeping your landscape completely clear.

Q3: Can the lift be customized to match my home's exterior architectural style?

Absolutely. High-end custom engineering allows you to select from a diverse palette of RAL powder-coat colors to match your home’s siding, choose between solid steel or transparent tinted acrylic guard panels, and select custom architectural accent lighting to seamlessly blend the lift with your property's aesthetic.

Q4: Are these lifts difficult to operate for elderly or disabled users?

Not at all. These systems are designed with maximum ergonomics in mind. They feature large, high-contrast, constant-pressure paddle switches or intuitive push-buttons that require very minimal hand strength to operate. Additionally, wireless key fobs and automated door openers can be integrated for fully hands-free operational access.
